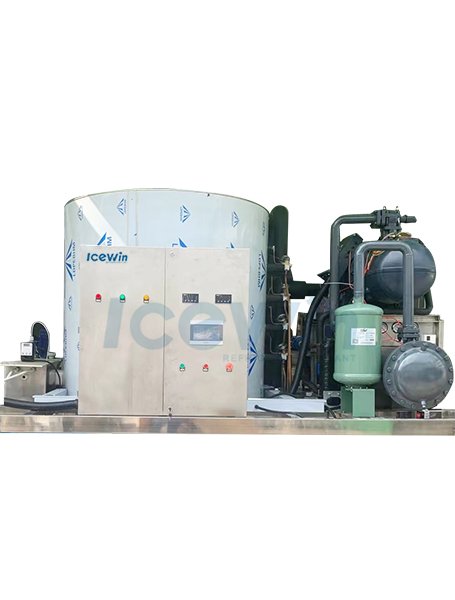

10T-Flake-ice-machine Split flake ice maker machine 10tons per day food grade with original intelligent control system

Flake ice machine Product Introduction

Flake ice machine has about 2% water content, is dry, not easy to melt, has a smooth surface and does not operate refrigerated products. According to the water source, it can be divided into freshwater flake ice machine and seawater flake ice machine. Generally, it is an industrial ice machine. Flake ice is thin, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, with an irregular shape and a diameter of about 12mm to 45 mm. Flake ice has no sharp edges and corners, and will not stab frozen objects. It can enter the gap between the objects to be cooled, reduce heat exchange, maintain the temperature of ice, and have a good moisturizing effect. Flake ice has excellent cooling effect, and has the characteristics of large and rapid cooling capacity, so it is mainly used in various large-scale refrigeration facilities, food quick-freezing, concrete cooling and so on.

Characteristics of flake ice

  • 1). Large contact area and rapid cooling
  • 2). Low production cost
  • 3). Excellent food insurance
  • 4). Fold and mix thoroughly
  • 5). Folding storage and transportation are convenient

Classification of daily output

  1. Small Flake Ice Machine: 0.5 tons to 3 tons
  2. Medium Flake Ice Machine: 5 tons to 20 tons
  3. Large Flake Ice Machine: 25 tons to 60 tons

Classification of the nature of water sources:

  1. Seawater Flake Ice Machine
  2. Freshwater Flake Ice Machine
  3. Use of Flake Ice

 Flake Ice is widely used in food processing, manufacturing, and concrete cooling. Such as fishery, aquatic product processing, food processing, poultry meat processing, vegetable distribution and preservation, pharmaceutical industry, concrete mixing, chemical dyes, etc.

No Name Data
1 ICE PRODUCTION(daily) 10000kg/24h
2 Refrigeration capacity 74.6KW
3 Gas R22
4 Installed power 40.6kW
5 Compressor input power 34.2kW
6 Cooling tower motor power 1.5kW
7 Reducer power 0.75kW
8 Circulating pump power 0.16kW
9 Cooling water pump 4kW
10 Salt pump power 0.016kW
11 Power supply 3P/220V60HZ
12 Rated Current 72A
13 Cooling Type Water-Cooled
14 Evaporator construction Helical structure
15 Evaporating temperature -20°C
16 Condensing temperature  40°C
17 Ice temperature -5°C
18 Ice thickness 1.5-2.2mm
19 Supply pressure 0.1Mpa-0.5Mpa
20 Water diameter 5/8″
21 Standard Ambient temperature 25°C
22     Water-feeding temperature 18°C
23 Noise (within 2m) 72dBA
24 Total Weight 1670kg
25 Total Dimension(L*W*H)(mm) 2800*2000*1850
